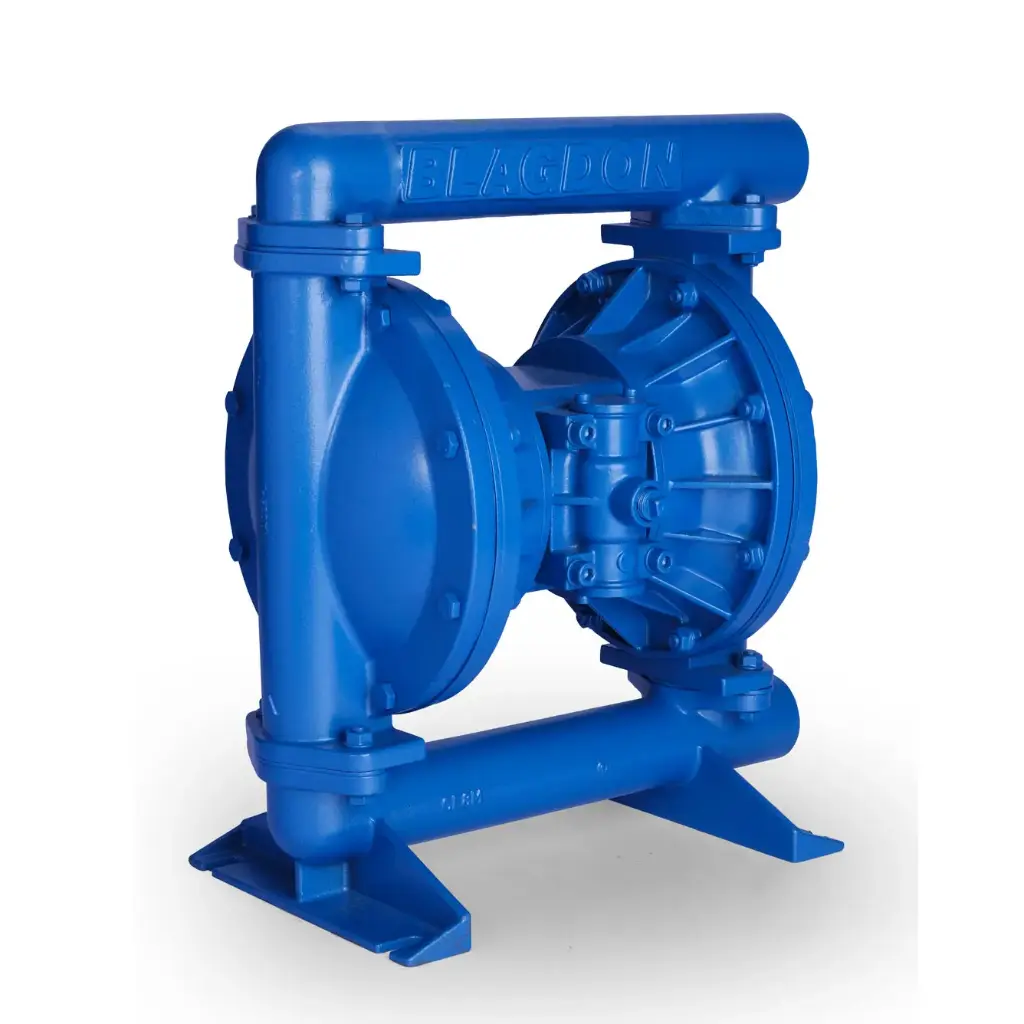

AODD PUMP 1 INCH-SS 316 MOC (B25 05 SA BB TTS 470)
Product Description:
Blagdon B25 05 SA BB TTS 470 is a 1-inch (25mm) metallic Air Operated Double Diaphragm (AODD) pump featuring a Stainless Steel 316 wetted body and an Aluminium center section
About the Product:
Air-driven and inherently non-sparking, making it safe for use in hazardous or explosion-prone areas. Versatile for transferring difficult liquids, including corrosive chemicals, viscous paints, and food products.
Make: BLAGDON
Specifications:
Pump Size: 1" (20mm) Suction and Discharge ports.
Max Flow Rate: Up to 180 Litres/Minute
Max Working Pressure: 8.6 Bar (125 psi).
Max Discharge Head: Up to 88 Metres (289 ft).
Air Inlet Size: 3/8" BSP (F).
Operating Temperature: 0°C to 180°C (32°F to 356°F).
Product Weight: 27kg.
Features:
1. Stall-Free Air Valve
2. Self-Priming
3. Safe "Dead-Head."
4. Fully Submersible
5. Gentle Pumping
